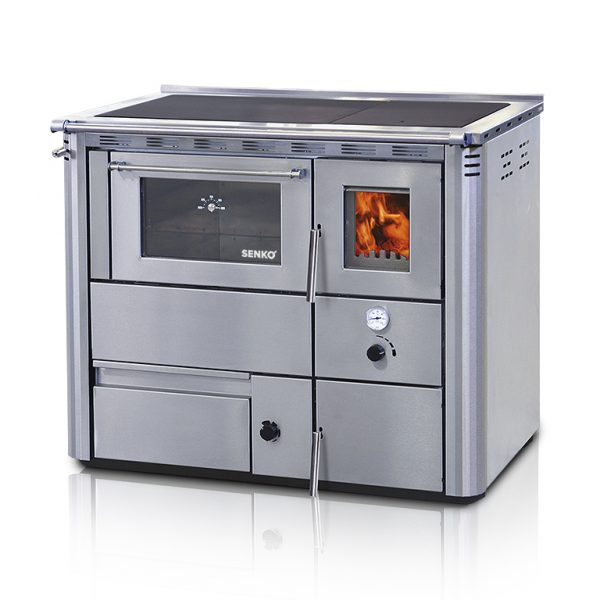

Central heating cooker 35 kW C-35



Nominal heat output: 21 – 35 kW
Dimensions (W x D x H): 100 x 78 x 85/92 cm
Flue gases exhaust: Ø 150mm



color-inox-hr

Cooking, baking, water or whole house heating – C-35 central heating cookers fired by solid fuels. They’re constructed just like the smaller C-20 or C-30 models, but include an additional oven for creating a charming impression like classical kitchen cooker used to. At the other hand, such a cooker is functional and heats the whole living area with its central heating system.

Compare
SKU: 2835 L/D Category:

Additional information

Nominal heat output

21 – 35 kW

- boiler

5,4 – 21 kW

- room

15,6 – 14 kW

Amount of water in boiler

28 L

Weight

270 kg

Cooking plate (WxD)

860 x 567 mm

Oven dimensions (WxDxH)

360 x 600 x 260 mm

Flue gases exhaust

Ø 150 mm

Primary air intake

Ø 120 mm

Required flue draught

15 Pa

Efficiency

82,68 %

Air regulation - primary

auto

Air regulation - secundary

manual

Boiler protection

prepared for boiler overheating thermal protection

Firebox grate – movable

mechanism

Visina štednjaka

850-920 mm

Firebox door

fireproof glass

Color

INOX MAT, PC-2, PC-3, PC-7

Energy efficiency class

A+

Download

D = right cooker – view from the back side
L = left cooker – view from the back side


ERP – Energy Label
Download label
ERP – Information Sheet
Download sheet
